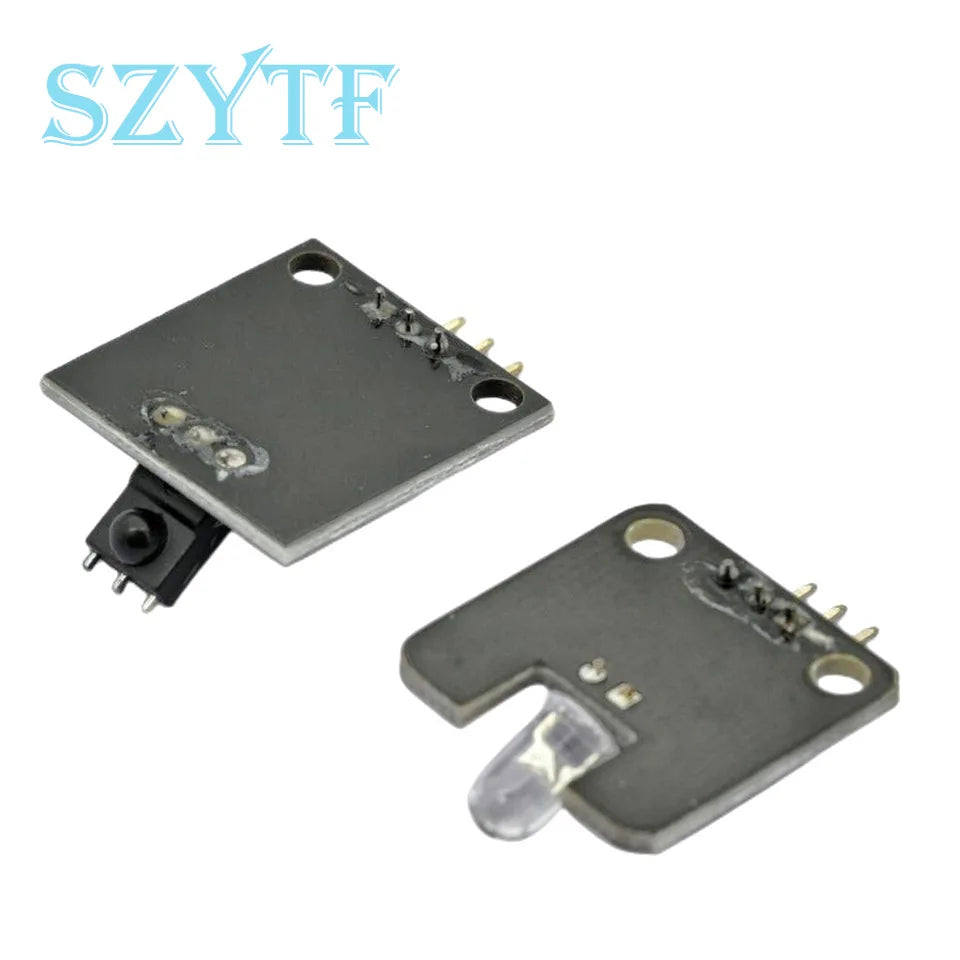

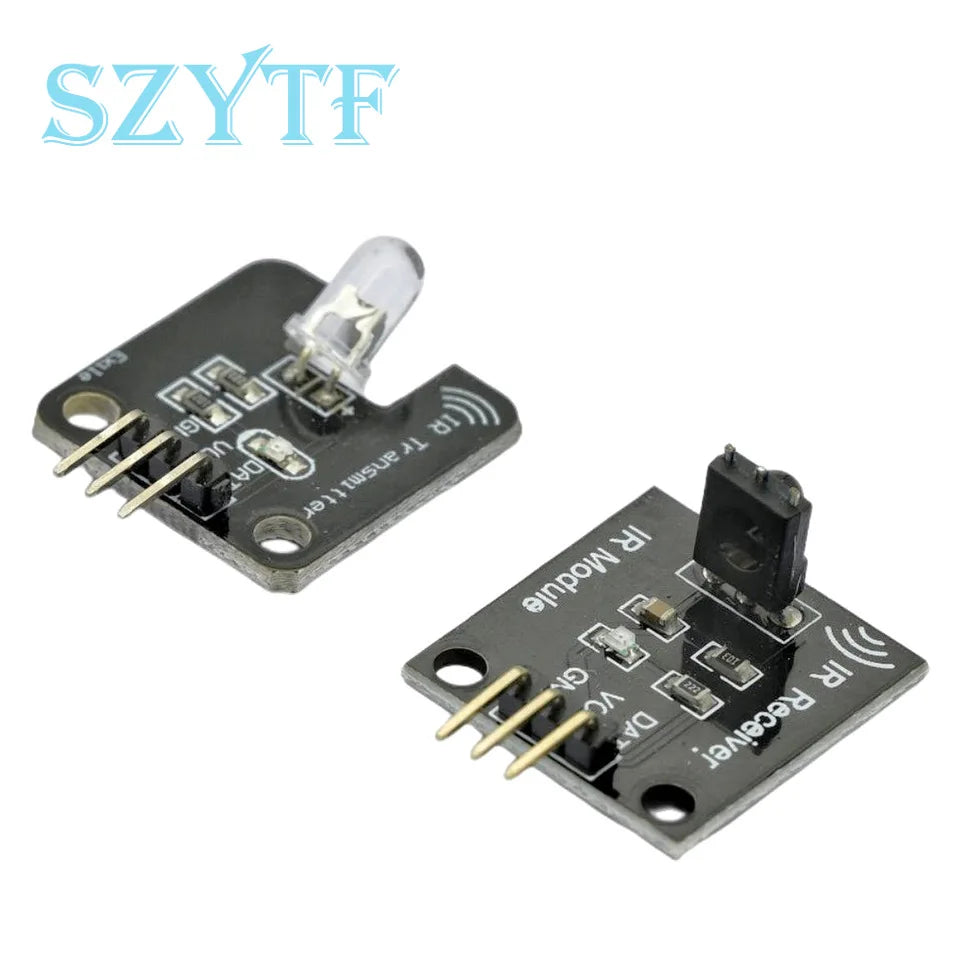

IR Infrared Transmitter Module Ir Digital 38Khz Infrared Receiver Sensor Module For Arduino Electronic Building Block

IR Infrared Transmitter Module Ir Digital 38Khz Infrared Receiver Sensor Module For Arduino Electronic Building Block

Transmitting module
€1,02
Passer aux informations sur le produit
IR Infrared Transmitter Module Ir Digital 38Khz Infrared Receiver Sensor Module For Arduino Electronic Building Block
  • IR Infrared Transmitter Module Ir Digital 38Khz Infrared Receiver Sensor Module For Arduino Electronic Building Block
  • IR Infrared Transmitter Module Ir Digital 38Khz Infrared Receiver Sensor Module For Arduino Electronic Building Block
  • IR Infrared Transmitter Module Ir Digital 38Khz Infrared Receiver Sensor Module For Arduino Electronic Building Block
  • IR Infrared Transmitter Module Ir Digital 38Khz Infrared Receiver Sensor Module For Arduino Electronic Building Block
  • IR Infrared Transmitter Module Ir Digital 38Khz Infrared Receiver Sensor Module For Arduino Electronic Building Block
  • IR Infrared Transmitter Module Ir Digital 38Khz Infrared Receiver Sensor Module For Arduino Electronic Building Block
  • IR Infrared Transmitter Module Ir Digital 38Khz Infrared Receiver Sensor Module For Arduino Electronic Building Block
  • IR Infrared Transmitter Module Ir Digital 38Khz Infrared Receiver Sensor Module For Arduino Electronic Building Block
IR Infrared Transmitter Module Ir Digital 38Khz Infrared Receiver Sensor Module For Arduino Electronic Building Block

IR Infrared Transmitter Module Ir Digital 38Khz Infrared Receiver Sensor Module For Arduino Electronic Building Block

€1,02
Color

SPECIFICATIONS

Application: Computer

Brand Name: SZYTF

Choice: yes

Condition: New

Dissipation Power: n/a

High-concerned chemical: None

Operating Temperature: n/a

Origin: Mainland China

Supply Voltage: n/a

Type: Module

is_customized: Yes

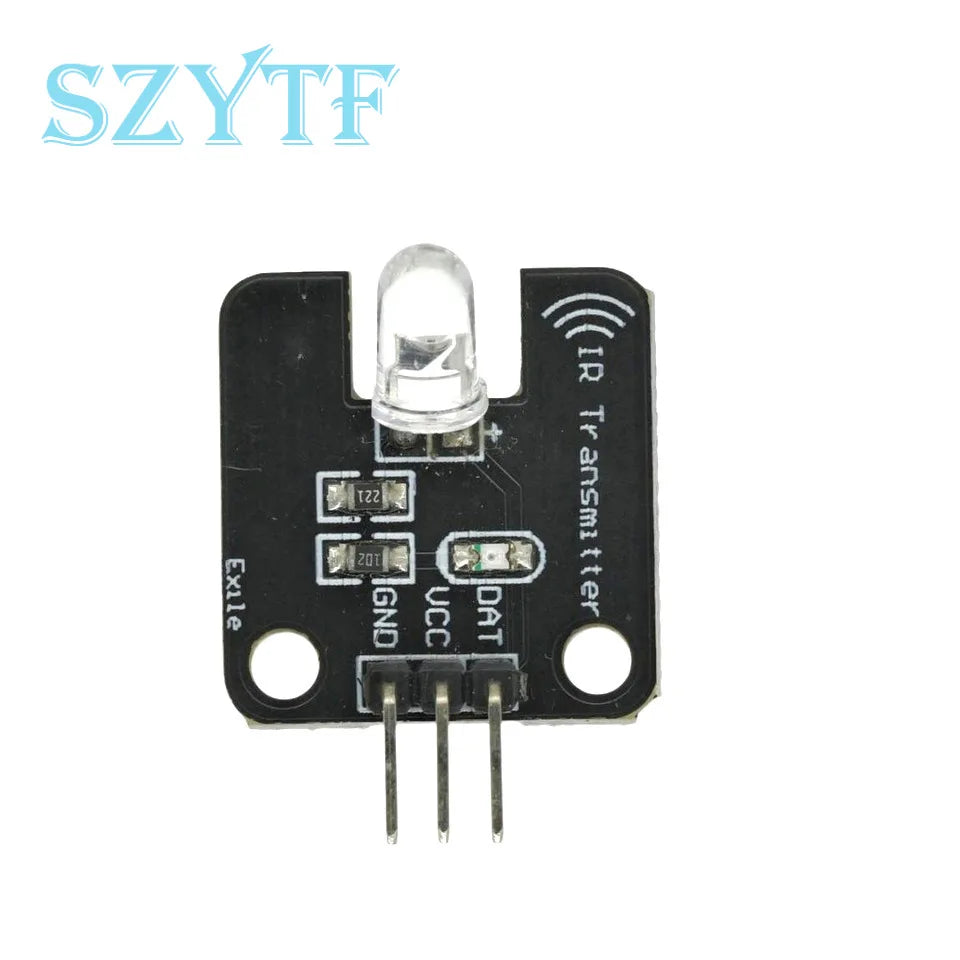

1. Infrared emission module:

  • Supply voltage: 5V

  • Working environment: -25~+85C

  • Storage temperature: - 30! 10OC

  • Wavelength: 940mm

  • Signal type: Digital signal

  • Infrared central wavelength: About 850nm-940nm

  • Infrared emission distance: About 1.3 m (5V 38khz)

  • Infrared emission Angle: About 20 degrees

  • Module weight: 1.5 g

  • Modules only store: 23.5 * 20.8 mm

  • Positioning hole size: 3mm

Wiring instructions:

  • DAT: indicates the digital output interface

  • VCC: positive terminal of the 5VDC power supply

  • GND: The negative pole of the 5VDC power supply

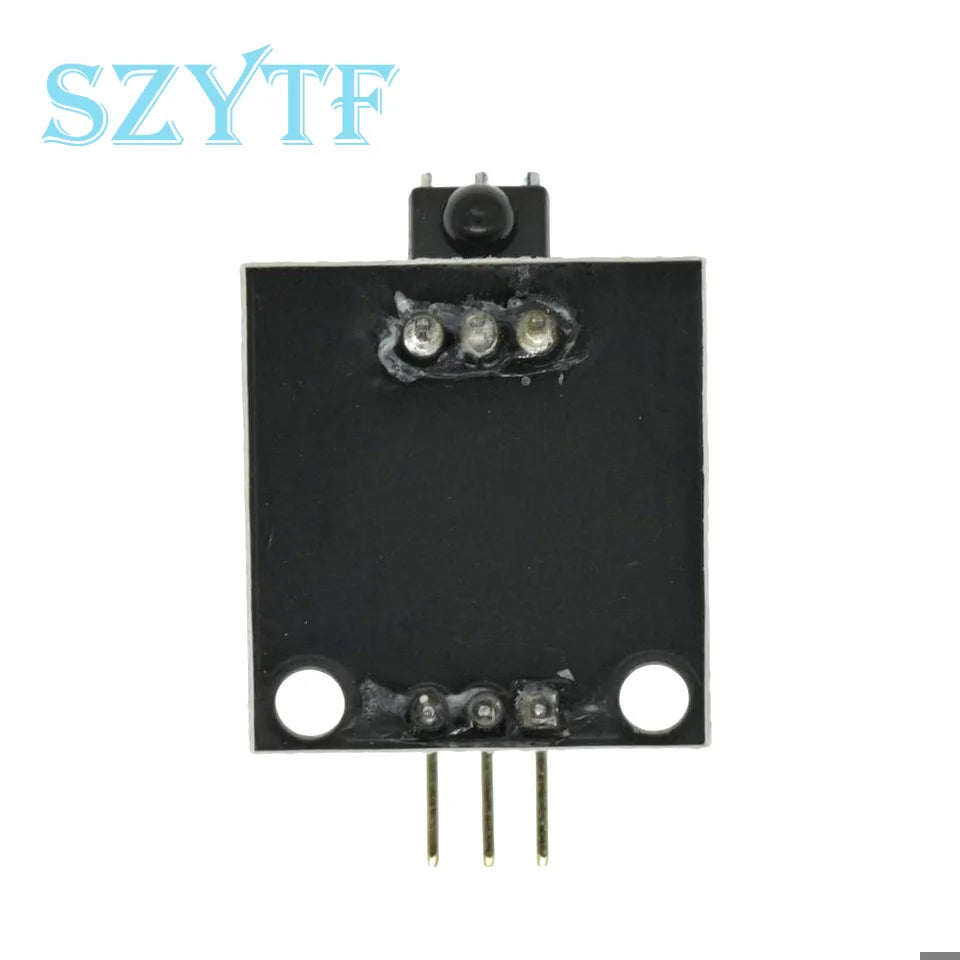

2. Infrared receiving module:

  • Supply voltage: 5V

  • Working environment: -25~+85C

  • Storage temperature: - 30! 100C

  • Carrier frequency: 940mm

  • Signal type: Digital signal

  • Infrared emission distance: About 10 meters

  • Infrared emission Angle: About 35 degrees

  • Module weight: 1.5 g

  • Modules only store: 23.5 * 20.8 mm

  • Positioning hole size: 3mm

Wiring instructions:

  • DAT: digital output interface

  • VCC: positive terminal of the 5VDC power supply

  • GND: The negative pole of the 5VDC power supply
